中心线源码修改(已解決)

ga619091

目前的源码效果是只能再矩形上作5MM中心线
要怎么改成对不规则图形也能做5MM中心线

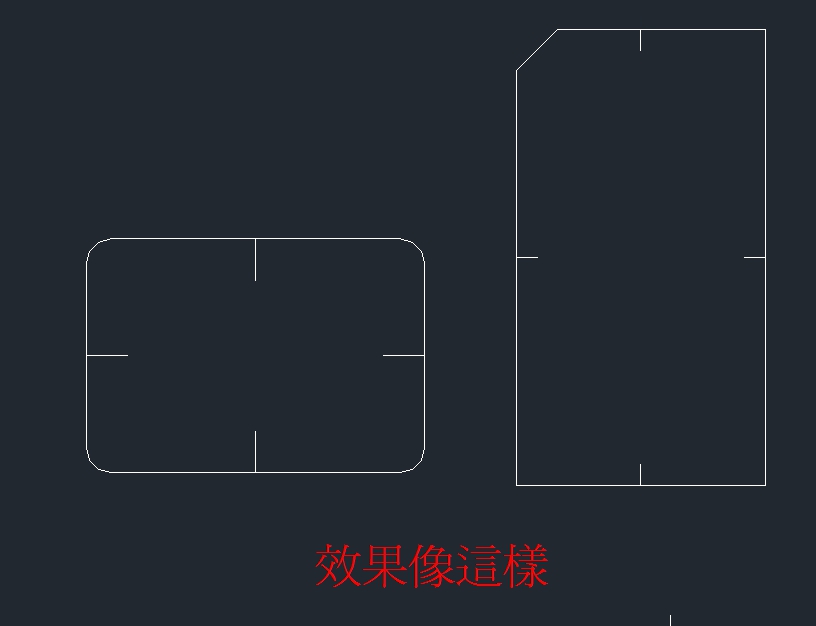

效果如图

(defun c:test()
(setq cmd (getvar "cmdecho"))
(setq osm (getvar "osmode"))
(setvar "cmdecho" 0)
(command "undo" "be")
(If (progn
(princ "請選取矩形:")
(setq ssa (ssget":S" '((0 . "lwpolyline") (90 . 4) (70 . 1))))
)
(progn
(setq dxf (entget (ssname ssa 0)))
(setq pts (mapcar 'cdr (vl-remove-if '(lambda(x)(/= (car x) 10)) dxf)))
(setq p1 (apply 'mapcar (cons 'min pts)))
(setq p3 (apply 'mapcar (cons 'max pts)))
(setq p2 (list (car p3) (cadr p1)))
(setq p4 (list (car p1) (cadr p3)))
(setq p14m1 (mapcar '(lambda(a b)(* 0.5 (+ a b))) p1 p4))
(setq p14m2 (mapcar '+ p14m1 '(5 0)))
(setq p12m1 (mapcar '(lambda(a b)(* 0.5 (+ a b))) p1 p2))
(setq p12m2 (mapcar '+ p12m1 '(0 5)))
(setq p23m1 (mapcar '(lambda(a b)(* 0.5 (+ a b))) p2 p3))
(setq p23m2 (mapcar '+ p23m1 '(-5 0)))
(setq p34m1 (mapcar '(lambda(a b)(* 0.5 (+ a b))) p3 p4))
(setq p34m2 (mapcar '+ p34m1 '(0 -5)))
(setvar "osmode" 0)
(mapcar '(lambda(pts)
(command "_line" (car pts) (cadr pts) "" "_chprop" (entlast) "" "c" 1 "")
)
(list (list p14m1 p14m2)
(list p12m1 p12m2)
(list p23m1 p23m2)
(list p34m1 p34m2)
)
)
(mapcar '(lambda(pt dxy)
(setq pt1 (mapcar '+ pt dxy))
)
(list p1 p2 p3 p4 )
(list ' (-8 8) '(8 -8))
)
)
)
(command "undo" "e")
(setvar "osmode" osm)
(setvar "cmdecho" cmd)
(princ)
)

panliang9

http://bbs.mjtd.com/thread-108422-1-1.html

一个闭合的多段线多边形，它会画出一个十字中心

ga619091

(90 . 4) (70 . 1)  拿掉就好了
